Servo Riveting Machine product

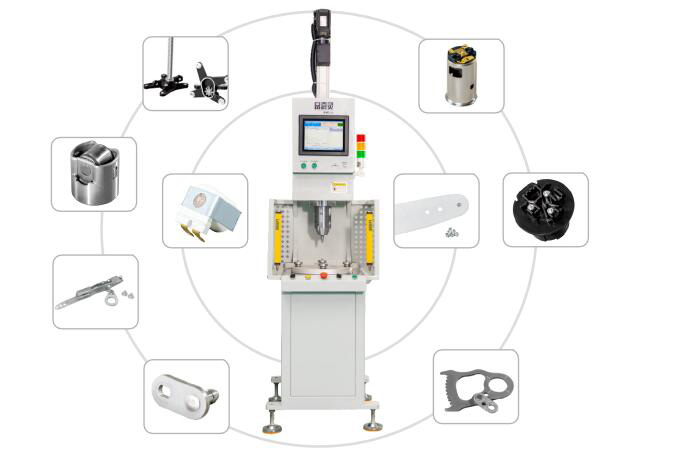

A servo riveting machine is a type of automated equipment used for the process of riveting. Riveting is a permanent fastening method that joins two or more materials together by using a rivet, which is a metal pin with a head on one end. The rivet is inserted into pre-drilled holes in the materials to be joined, and then the other end is deformed or "headed" to secure the materials in place.

Get a Quote

Productdetails

Main technical parameters

technical indicators	PJL-BM0.5T	PJL-BM1T	PJL-BM2T	PJL-JM2T	PJL-BM3T	PJL-BM5T	PJL-BM10T
Riveting capacity (mm)	Ø2- Ø6	Ø2- Ø9	Ø2- Ø12	Ø2- Ø6	Ø2- Ø16	Ø2- Ø20	Ø2- Ø30
Maximum spin riveting pressure (N)	5000	10000	20000	20000	30000	50000	100000
Maximum working stroke(mm)	100	100	150	100	100	100	100
Closed height(mm)	250	250	220	220	250	250	250
Keeldiepte (mm)	110	110	150	150	150	150	150
Protrusion length of rivet head(mm)	50	50	50	45	50	50	50
Table size(mm)	300X200	300X200	500X300	500X300	500X300	500X300	500X300
using electric	AC220	AC220	AC380	AC380	AC380	AC380	AC380
Power Consumption (W)	1500	2000	3200	3200	7300	9900	11900
motor steering	clockwise	clockwise	clockwise	clockwise	clockwise	clockwise	clockwise
Note: The riveting capacity is based on solid Q235 (A3) steel. If the rivet material is non-ferrous metal, hollow nail, the riveting capacity can be enlarged as appropriate

Voordeel

1) Our products use high-precision screw rods as the transmission method to ensure riveting accuracy and riveting life.

2) The servo motor is used as the driving force and cooperates with the high-precision planetary gear reducer to achieve large torque power output and ensure high-precision gear positioning.
3) The servo riveting mechanism has no three waste emissions and is energy-saving and environmentally friendly.

4) The teaching and programming operation is simple, and it has a code storage function for the riveted workpiece. When you use it for the second time, you only need to directly recall the data. The touch screen human-machine control system is easy to operate and understand, and can be switched between manual and automatic.

5) The servo motor control allows the machine head to move up and down, left and right, and the work table to move forward and backward with high precision, and the riveting position can be set at will.

6) The equipment can be designed as a double table portal CNC riveting machine to improve production efficiency. When work table A is riveted, work table B is assembled and unloaded; when tool B is riveted, work table A is assembled and unloaded.

7) Equipped with protective covers, two-hand buttons, safety light curtains and other protective devices to effectively protect the safety of operators.

8) Through the USB interface, riveting data can be stored in a flash drive or computer to ensure the traceability of product processing data and facilitate production quality control and management.
